Name: Talaria Sting R MX4 Electric Dirt Bike
SKU: 66
Availability: InStock

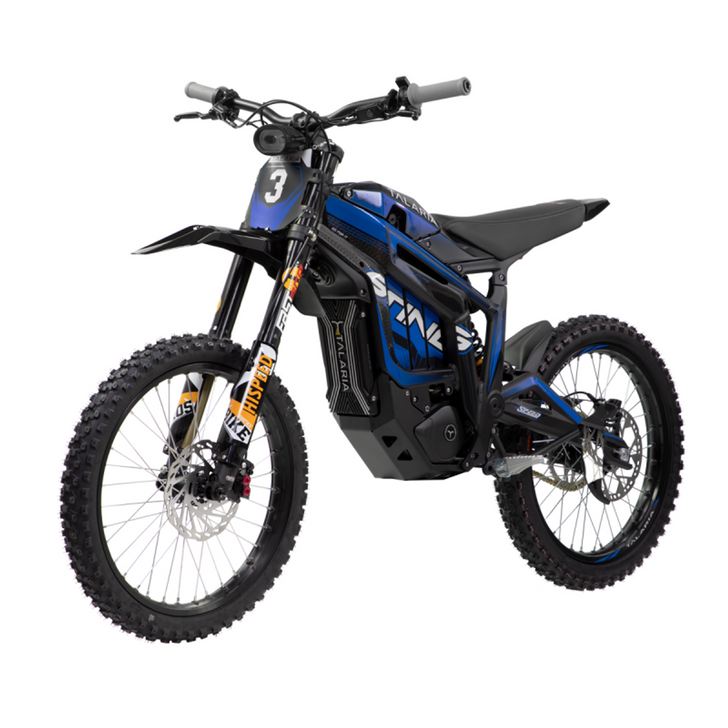

Talaria Sting R MX4 Electric Dirt Bike

THE NEXT GENERATION: TALARIA STING MX4

The Talaria Sting R, also known as the MX4, is the latest addition to the Talaria lineup. With an increase in power, updated motor, and a larger capacity battery, the MX4 is a significant improvement from its predecessor, the MX3.

Looking for an electric dirt bike that’s built for performance and thrills? The Talaria STING MX4 is the ride for you! With its CAD-designed lightweight frame, powerful electric motor, and intelligent gear drive for quiet operation, this bike is ready to take on the toughest off-road challenges. Its compact, well-balanced structure makes it easy to maneuver, and with minimal maintenance required, you can focus on the ride, not the upkeep. Don’t settle for anything less than the best – order your Talaria STING MX4 today and experience the ultimate in off-road excitement!

Power Pack

Get ready to experience the power of the Talaria STING R MX4 electric dirt bike! Equipped with an impressive 60V 45Ah lithium-ion power pack, delivering 2700 watt-hours of power, this bike is ready to take on any challenge. And with its easily swappable power packs, you can exchange a fully charged pack in seconds for limitless range. Featuring electric automobile grade LG 21700 lithium-ion battery cells, state-of-the-art programmed BMS, and an optimized internal structure, this battery pack ensures safe and high-performance off-road riding. Don’t wait – order your Talaria STING R MX4 today and take your off-road adventures to the next level!

Electronic

Battery Pack: 60V 45AH

Battery Size: 170mm x 140mm x 380mm

Battery Weight: 12.8 KG / 28.16 lbs

Battery Cells: LG Brand 21700 Cell (5000 MAH/Cell)

Speedometer: Speed / Battery Level, Voltage, cycle / Odometer

Regen Adjustment: 4 Levels Adjustable in the Speedomete

Description

Talaria Sting R MX4 Electric Dirt Bike

Powertrain

Say goodbye to broken belt anxiety and hello to the ultimate in off-road performance with the Talaria STING R MX4! The customized combination powertrain design is perfect for this lightweight electric MX4 bike, featuring a high-efficiency IPM mid-drive motor with top-class magnet material and advanced processing. With a peak torque output of 45N.m, this motor delivers unbeatable power and performance. And with exquisitely crafted high-accuracy gears, the gearbox runs even quieter and is much more durable than any belt drive system. Don’t wait – order your Talaria STING R MX4 today and experience the ultimate in off-road riding!

SPECIFICATIONS: Talaria Sting R MX4 Electric Dirt Bike

Chassis Material: 6061 T4 & T6 Aluminum Alloy

Process Method: Forged by 6000 Tons Pressure

Surface Method: Anodizing

Headlight: LED

Front Fork: Fastace / Factory

Rear Shock: Fastace / Factory

Wheel Size: 19”

Tire: FR 70/100-19 / RR 80/100-19

Top Speed: Approx 85 km/h (52.8 mph) (Factory limited to 32 km/h)

Max. Range: 120 km @ 25 km/h (74.5 miles @ 15.5 mph)

Net Weight: 66 Kg (Including Battery)

Vehicle Dimension: 1880mm x 770mm x 1088mm

Seat Height: 840mm

Wheelbase: 1250mm

Handlebar Length: 760mm

Ground Clearance: 300mm

Motor Type

Motor type: DC IPM (Interior Permanent Magnet)

Mounting Position: Middle of the Frame

Weight: 7 kg

Motor Ext. Diameter: 180mm

Peak Efficiency: 92%

Cooling Method: Air Cooled

Controller

Controller Type: FOC

Weight: 2 kg

Dimension: 248mm x 128mm x 50mm

Peak Efficiency: 92%

Highest Work Temp: 100°

Power System

Nominal Voltage: 60V (DC)

Nominal Power: 4000W

Peak Power: 8000W

Nominal Torque: ≥45 N.M

Transmission

Gear Ratio: 8.35 (44T) / 9.18 (48T)

1st Transmission: Gearbox

2nd Transmission: Chain
